    <TD><H3>HYS TC-UV66</H3>
      <A HREF="Photos/HYS_TC-UV66.jpg">
      <IMG SRC="Photos/HYS_TC-UV66.jpg"  TITLE="HYS TC-UV66" WIDTH="900" BORDER="1" /></A>
      <TABLE BORDER="1" STYLE="font-size: medium;">
        <TR bgcolor="#CCFFFF">
          <TD><STRONG>Type:</STRONG></TD>
          <TD>Private Mobile Radio</TD>
        </TR>
        <TR>
          <TD><STRONG>Frequency Range:</STRONG></TD>
          <TD>RX: 87-108<BR />TX/RX: 136-174 / 400-480 MHz</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Mode:</STRONG></TD>
          <TD>FM</TD>
        </TR>
        <TR>
          <TD><STRONG>RF Power output:</STRONG></TD>
          <TD><STRONG>VHF:</STRONG> 45/20 W<BR /><STRONG>UHF:</STRONG> 35/15 W</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Memory Channels:</STRONG></TD>
          <TD>128</TD>
        </TR>
        <TR>
          <TD><STRONG>Frequency Steps:</STRONG></TD>
          <TD>5, 6.25, 10, 12.5, 25 kHz</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>CTCSS/DSC:</STRONG></TD>
          <TD>CTCSS: 50<BR />DCS: 105</TD>
        </TR>
        <TR>
          <TD><STRONG>Voltage:</STRONG></TD>
          <TD>13.8V DC</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Current Drain:</STRONG></TD>
          <TD>RX: 800 mA<BR />
            TX: Max 1 A</TD>
        </TR>
        <TR>
          <TD><STRONG>Aerial Input:</STRONG></TD>
          <TD>50Ω</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Dimensions (W*H*D):</STRONG></TD>
          <TD>160 x 43 x 137 mm</TD>
        </TR>
        <TR>
          <TD><STRONG>Weight:</STRONG></TD>
          <TD>1200g</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Manufactured:</STRONG></TD>
          <TD>Quanzhou Truest Communication: 201x-20xx</TD>
        </TR>
        <TR>
          <TD><STRONG>Other:</STRONG></TD>
          <TD>Dual Band, PC Programmable<BR />DTMF sidEtone switch, 1750Hz burst tone</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Related Documents:</STRONG></TD>
          <TD><BR /></TD>
        </TR>
      </TABLE><BR />

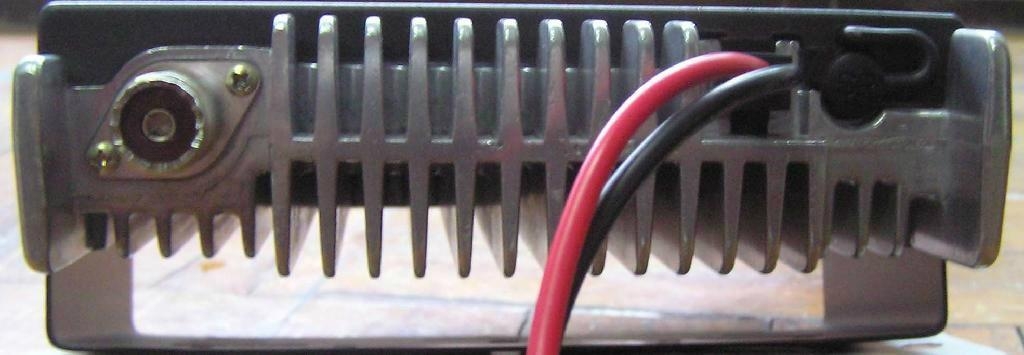

      <A HREF="Photos/HYS_TC-UV66_rear.jpg">
      <IMG SRC="Photos/HYS_TC-UV66_rear.jpg"  TITLE="HYS TC-UV66" WIDTH="900" BORDER="1" /></A></TD>
